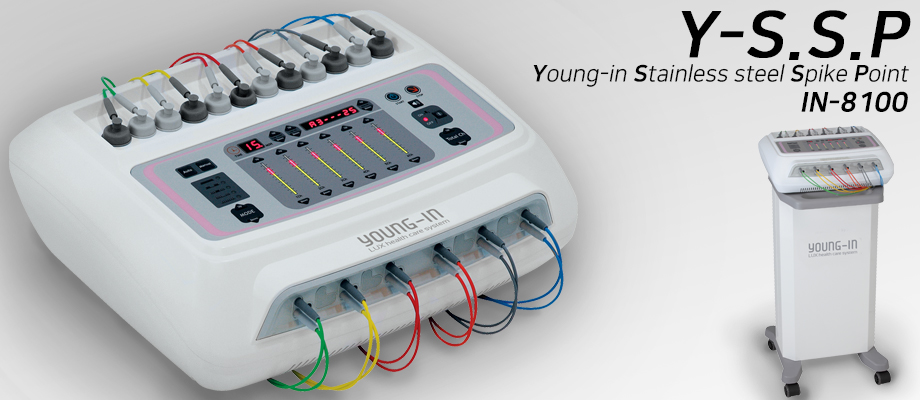

Y.S.S.P. (IN-8100)

IN-8100 YSP(low-frequency)

Characteristics

  • Two-way symmetric wave (pulse wave)
  • Upon completion of the set time the buzzer sounded
  • Overcurrent protection
  • Adopt the digital circuit

Accessory

  • Power Cord 1, Suction Line 6, Suction Pad Cup 6

Specifications

Power AC 100~240V
Input Frequency 50/60Hz
Power Consumption 50VA
Waveform Two-way Symmetric Wave
Output mode
Mode Output waveform
High cont. High Continuous output frequency
High Mod. High Energized 3 seconds 3 seconds pause frequency
Mix Low Frequency and High Frequency energized for 3 seconds at a time
Low Mode. Low Frequency 3 seconds 3 seconds pause energized
Lowcont. Low frequency continuous output
Fixed Frequency, Output Current
Low Frequency Range 1~19Hz
Maximum Current 19Hz: 4.8mA
High Frequency Range 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 500, 1,000Hz
Maximum Current 1,000Hz: 22mA
AUTO frequency 5 5 Modes Seletions
Use time (timer) 1~60Min
Maximum degree of vacuum suction Maximum vacuum pressure of 31Kpa
Dimensions (W)440mm*(L)355mm*(H)145mm
Weight 6.2KG
